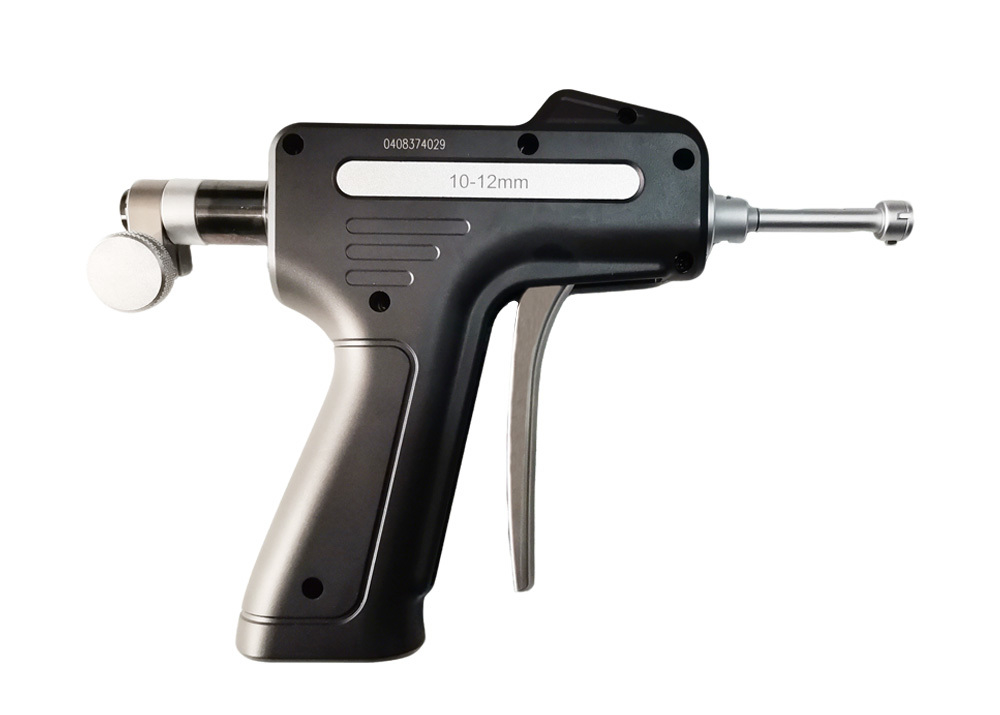

10-12mm Pistol-Grip 3 Point Bore Gauge Tool with Digital Indicator for Fast Batch Measurement

10-12mm Pistol-Grip 3 Point Bore Gauge Tool with Digital Indicator for Fast Batch Measurement

Description:

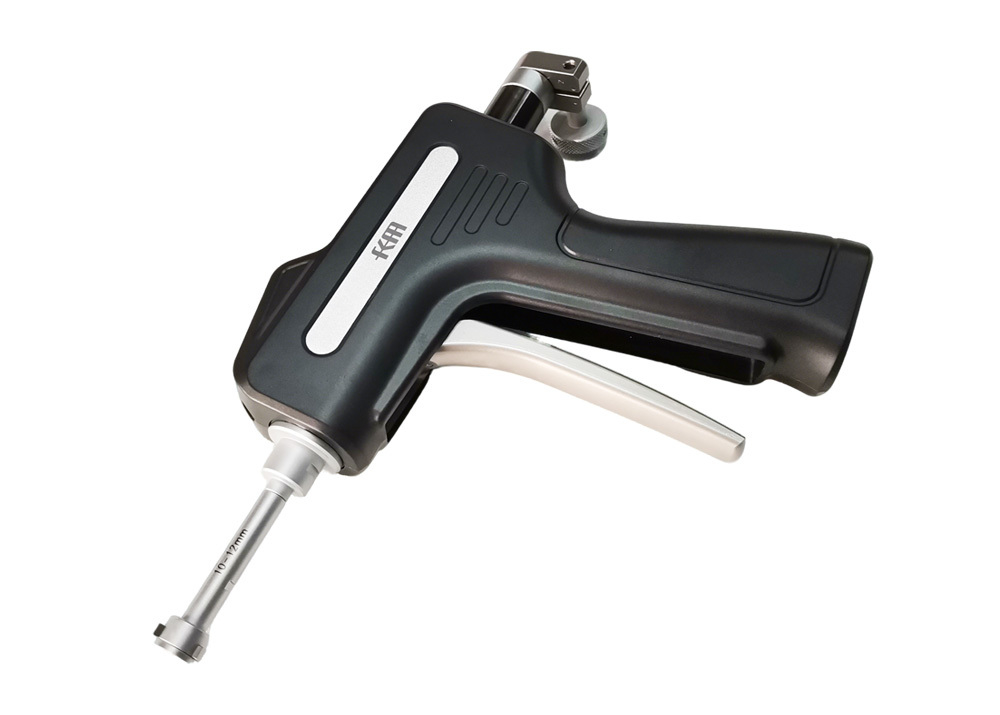

Pistol-grip three-point micrometer allows us to operate the micrometer with one hand, making it easy to measure in tight

spaces or hard-to-reach locations, and is suitable for batch measurements, allowing for quick comparison of the dimensions

of multiple holes to verify consistency.

Three point pistol micrometer has three contact points allow the micrometer to be more accurate and stable when measuring

blind and through holes. With three-point contact, the errors in the measurement process can be avoided more effectively,

thus improving the accuracy of the measurement results.

Pistol grip bore gauge available with a wide measuring range from 6-8mm up to 275-300mm for metric and 0.275-0.35″ up to 11-12″.

Quick Detail:
1. Self-centering 3-point for accurate bore measuring.
2. Measurement can be taken closer to the bottom of the blind bore.
3. Carbide-tipped contacts points, ratchet stop.
4. Digital indicator is optional. Fixing bore for digital indicator:φ8mm or 3/8’’.
5. Within 100mm, supplied with setting rings.
6. Supplied in fitted case.

Specification:


Applications:

Pistol-grip three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in

machinery manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields.

With its high measurement accuracy, easy to use and simple operation, it has become one of the important tools for

measuring bore diameter.

Precautions:
1. Do not apply excessive force to keep precise measuring when measuring.
2. Do not disassemble the instrument.
3. Keep the instrument clean and dry.
4. When install measuring jaws, pull back the grip of pistol and insert the measuring jaws into the grooves
    in the measuring head in turn. Inspect whether the measuring jaws by smaller pull.
5. When changing the measuring jaws, number of the measuring jaws must fit the relevant that of the three grooves
    in the measuring head.
6. Return into the packaging box after apply anti-rust oil if not used for a long time.
7. Prevent dust from getting inside the three grooves in the measuring head.
8. Digital indicator with range of above 12.7mm/0.5'' is suggested to install with the pistol-grip three-point
    internal micrometers for use.
